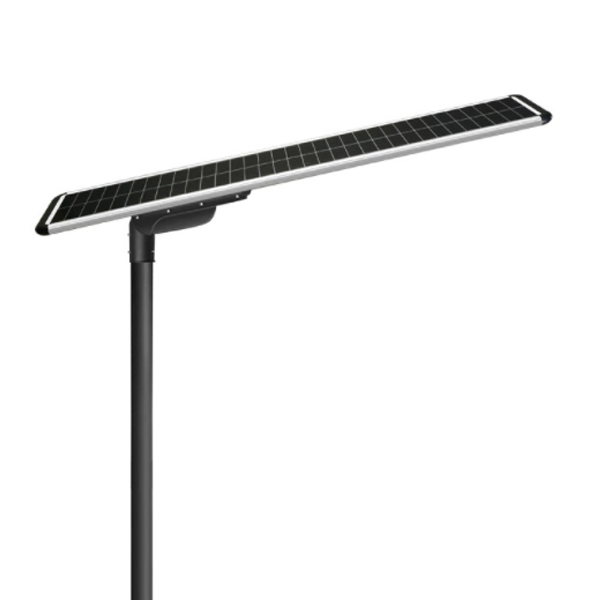

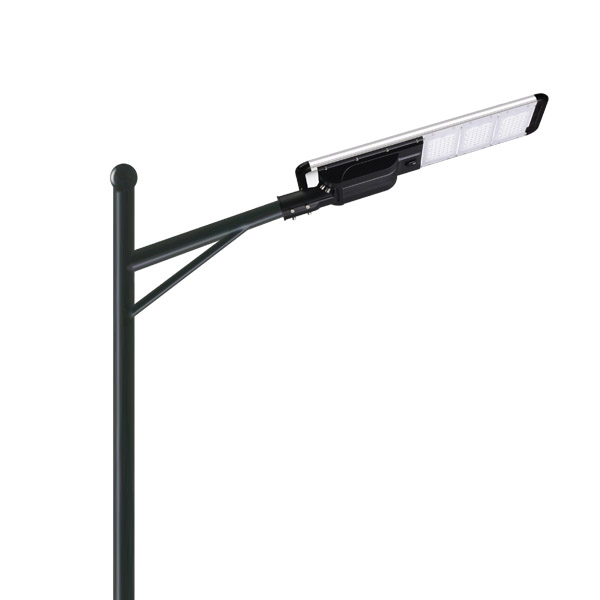

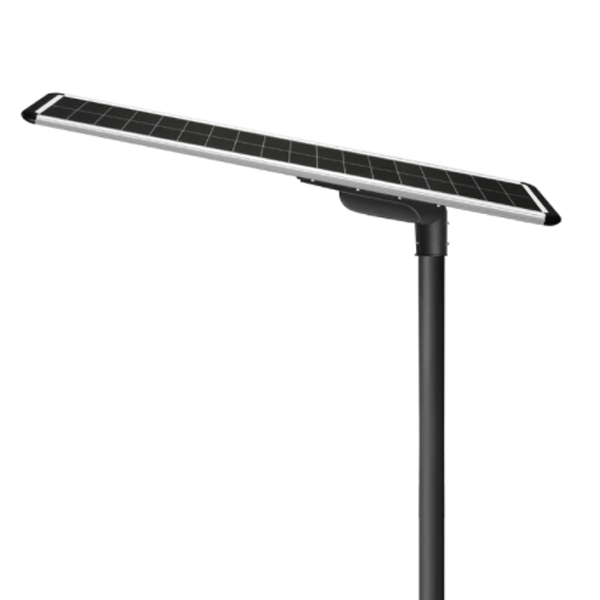

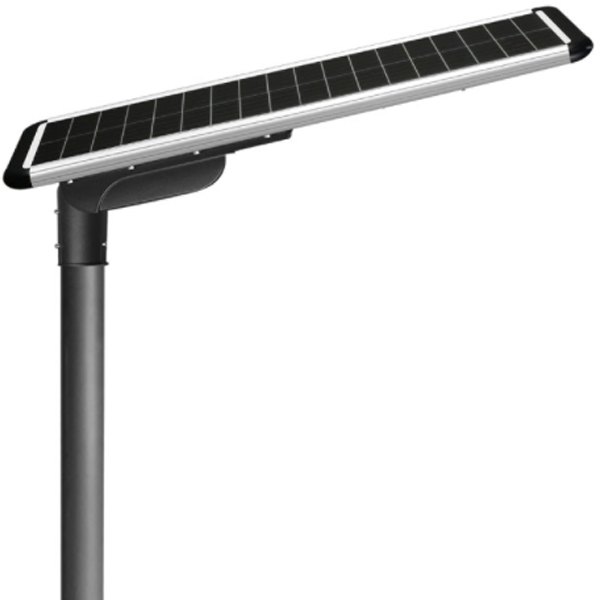

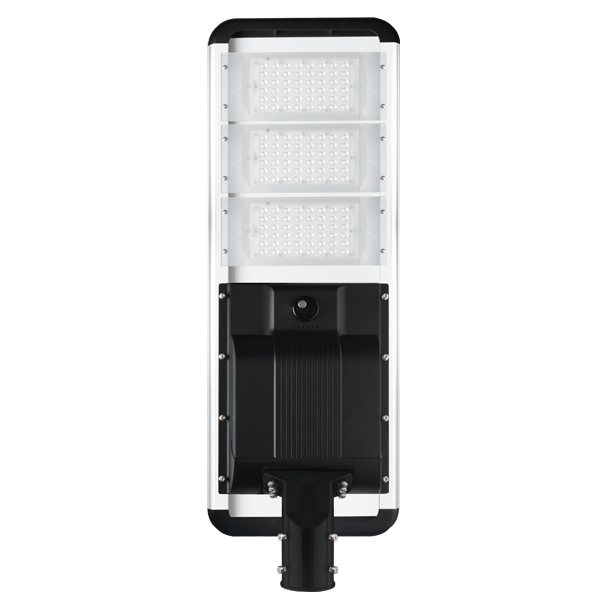

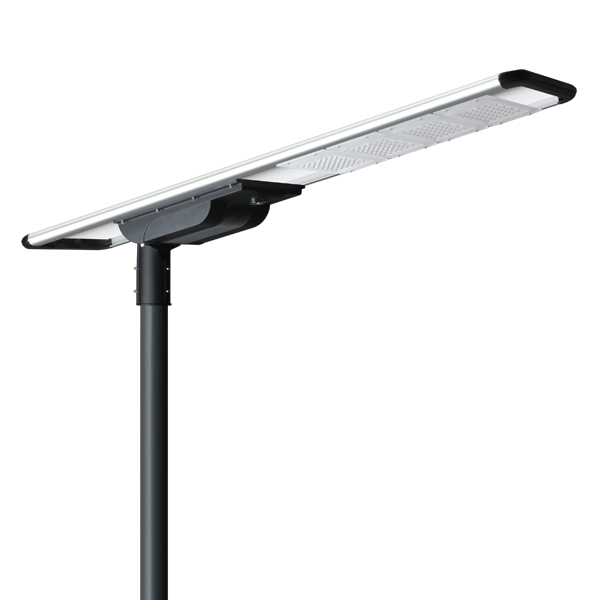

FX solar street light is the latest OEM LED solar street lamp developed and produced by our company in 2022. This China all in one LED solar street light has high-cost performance, novel style, a new battery and high-quality lamp beads, which are popular all over the world and meet the aesthetic needs of mass customers.
High-power LED chip, high luminous efficiency.
High-efficiency solar panel, better conversion rate, longer life span.
High-efficiency lithium battery, longer life span, more stable.
Intelligent controller with PIR sensor, more energy-saving.
| Model | FX-40W | FX-50W | FX-60W | FX-80W | FX-100W | FX-120W |
| Place of Origin | Guangdong, China | Guangdong, China | Guangdong, China | Guangdong, China | Guangdong, China | Guangdong, China |
| Brand Name | JKCSOLAR | JKCSOLAR | JKCSOLAR | JKCSOLAR | JKCSOLAR | JKCSOLAR |
| Model Number | JKC-FX-40W | JKC-FX-50W | JKC-FX-60W | JKC-FX-80W | JKC-FX-100W | JKC-FX-120W |
| Application | ROAD | ROAD | ROAD | ROAD | ROAD | ROAD |
| Color Temperature(CCT) | 2000-7000K(customized available) | 2000-7000K(customized available) | 2000-7000K(customized available) | 2000-7000K(customized available) | 2000-7000K(customized available) | 2000-7000K(customized available) |
| IP Rating | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 |
| Beam Angle(°) | 140*70° | 140*70° | 140*70° | 140*70° | 140*70° | 140*70° |
| CRI (Ra>) | 80 | 80 | 80 | 80 | 80 | 80 |
| Input Voltage(V) | DC 12V | DC 12V | DC 12V | DC 12V | DC 12V | DC 12V |
| Lamp Luminous Efficiency(lm/w) | 170Lm/w | 170Lm/w | 170Lm/w | 170Lm/w | 170Lm/w | 170Lm/w |
| Lamp Luminous Flux(lm) | 6800LM | 8500LM | 10200LM | 13600LM | 17000LM | 20400LM |
| Warranty(Year) | 3-Year | 3-Year | 3-Year | 3-Year | 3-Year | 3-Year |
| Working Temperature(℃) | -90 | -90 | -25 - 65 | -90 | -25 - 65 | -25 - 65 |
| Color Rendering Index(Ra) | 80 | 70 | 70 | 70 | 70 | 70 |
| Certification | RoHS, CE, IP66, IK09, IEC | RoHS, CE, IP66, IK09, IEC | RoHS, CE, IP66, IK09, IEC | RoHS, CE, IP66, IK09, IEC | RoHS, CE, IP66, IK09, IEC | RoHS, CE, IP66, IK09, IEC |
| Power Supply | Solar | Solar | Solar | Solar | Solar | Solar |
| Light Source | LED | LED | LED | LED | LED | LED |
| Support Dimmer | Yes | Yes | Yes | Yes | Yes | Yes |
| Lighting solutions service | Lighting and circuitry design, Project Installation | Lighting and circuitry design, Project Installation | Lighting and circuitry design, Project Installation | Lighting and circuitry design, Project Installation | Lighting and circuitry design, Project Installation | Lighting and circuitry design, Project Installation |
| Lifespan (hours) | 100000 | 100000 | 100000 | 100000 | 100000 | 100000 |
| Working Time (hours) | 100000 | 100000 | 100000 | 100000 | 100000 | 100000 |
| Lamp Body Material | High class aluminium alloy | High class aluminium alloy | High class aluminium alloy | High class aluminium alloy | High class aluminium alloy | High class aluminium alloy |
| Solar Panel | 18V 65W High efficiency Monocrystalline silicon | 18V 70W High efficiency Monocrystalline silicon | 18V 80W High efficiency Monocrystalline silicon | 18V 100W High efficiency Monocrystalline silicon | 18V 130W High efficiency Monocrystalline silicon | 18V 140W High efficiency Monocrystalline silicon |
| LED | USA Bridgelux 3030 Chips | USA Bridgelux 3030 Chips | USA Bridgelux 3030 Chips | USA Bridgelux 3030 Chips | USA Bridgelux 3030 Chips | USA Bridgelux 3030 Chips |
| Battery Type | 12.8V 30AH Powerful LifePO4 battery | 12.8V 36AH Powerful LifePO4 battery | 12.8V 48AH Powerful LifePO4 battery | 12.8V 54AH Powerful LifePO4 battery | 12.8V 66AH Powerful LifePO4 battery | 12.8V 72AH Powerful LifePO4 battery |
| Discharge time | 12hour/Day, backup 5-7 days | 12hour/Day，backup 5-7 days | 12hour/Day，backup 5-7 days | 12hour/Day，backup 5-7 days | 12hour/Day，backup 5-7 days | 12hour/Day，backup 5-7 days |
| Photoelectric conversion efficiency | 21% | 21% | 21% | 21% | 21% | 21% |
| Charging time | 5-6 Hours | 5-6 Hours | 5-6 Hours | 5-6 Hours | 5-6 Hours | 5-6 Hours |
| Install height | 6-7m | 7-8m | 6-8m | 8-9m | 9-10m | 10-12m |
| Lighting Mode | Dusk to dawn + Time controll + motion sensor (cuztomize is available) | Dusk to dawn + Time controll +motion sensor (cuztomize is available) | Dusk to dawn + Time controll + motion sensor (cuztomize is available) | Dusk to dawn +Time controll + motion sensor (cuztomize is available) | Dusk to dawn + Time controll + motion sensor (cuztomize is available) | Dusk to dawn + Time controll + motion sensor (cuztomize is available) |
